Handlebar Risers with Offset for BMW F900R

All Bikes

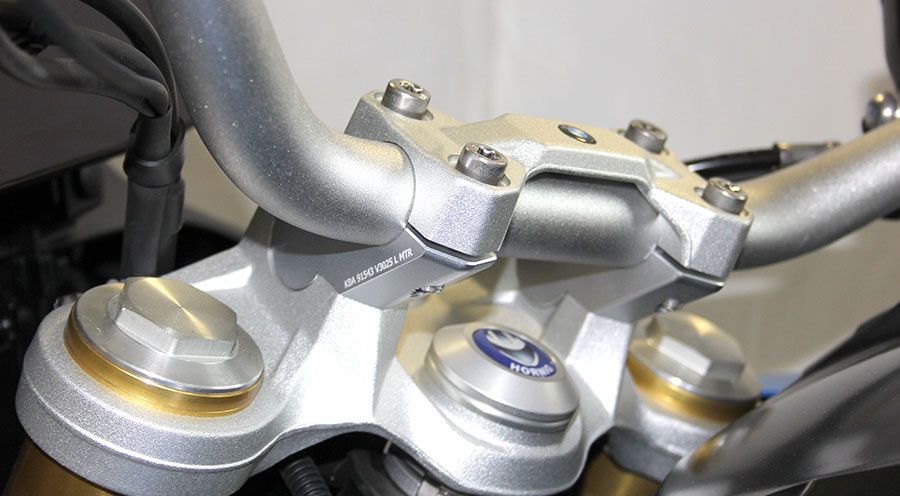

Handlebar risers with offset: 30mm higher and 25mm closer to the rider

Raising the handlebar by 30mm results in a more upright, much more relaxed seating position. Moreover, the handlebar is brought 25mm closer to the rider which additionally improves driving comfort.
The handlebar riser also makes riding while standing less tiring, which is of tremendous benefit to taller riders in particular.
The overall result is a noticeable increase in stamina and concentration. Long stretches on the motorway are less nerve-racking, and even fast, difficult off-road sections are easier to handle.
The length of the cables and lines must be checked individually and extended if necessary. We recommend using the brake line extension adapter 27819, which is sold separately. The clutch cable must be unhooked at the left side of the head tube and fastened a little further up with a cable tie.
Fits on original handlebar.
Also referred to as handlebar risers, handlebar height increase, bar back risers, barbacks.

Install Instruction

Handlebar Risers 30/25mm

Article-No. : 26876

Availability: immediately available Show details

Price: € 104,90
USD: 109,32 $
GBP: 87,98 £
AUD: 175,16 $A
without VAT plus shipping

4 pieces stainless steel Allen screw M8 for replacing the special screws

Article-No. : 2534-520

Availability: immediately available Show details

Price: € 11,90
USD: 12,40 $
GBP: 9,98 £
AUD: 19,87 $A
without VAT plus shipping

Adapter for brake line

Article-No. : 27819

Availability: immediately available Show details

Price: € 40,20
USD: 41,89 $
GBP: 33,72 £
AUD: 67,13 $A
without VAT plus shipping

Questions about this article

Are the handlebar risers delivered as a complete set?
Yes, of course. Please take a look at the product images. In the 4th picture you can see exactly what you get (2x handlebar risers + 4x screws).

Do I need the additional screws (item 2534-520)?
BMW uses special screws with threads in their extended screw heads on the triple clamp in order to mount the navigation system there. If somebody does not want to mount the navigation system there anylonger, our shorter screws (2534-520) can be used. With these screws you do not have any disturbing screw heads with thread on the triple clamp. An elegant solution if you do not want to mount the support of the BMW GPS system on the triple clamp anylonger. Our short screws (2534-520) are not necessary for mounting the handlebar risers.

Ratings

Rating:
The average rating of this product is 5 of 5:
(after 1 Ratings)

Derry wrote | 2023-10-26:
Got handle bar risers for bmw f900r with brake pipe extension. Fitted yesterday and everything Fitted perfectly. I'm well impressed with product and will purchase again from hornig.com
